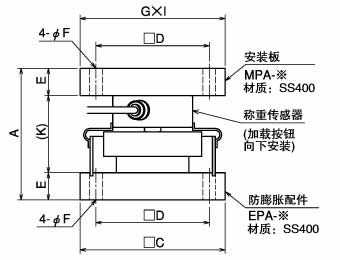

Item | Accessory part No. | A [mm] | □C (X1) [mm] | □D [mm] | E [mm] | φF [mm] | G [mm] | I [mm] | K [mm] | N(膨胀限度) [mm] | Weight [kg] |
---|---|---|---|---|---|---|---|---|---|---|---|
CMM1(R/J)-50K~ CMM1(R/J)-2T 用 | EPA-1A, MPA-2-B | 80 | 100 | 77 | 15 | 8 | 100 | 100 | 50 | ±8 | 3.3 |
CMP1-250K~CMP1-5T 用 | EPA-4B, MPA-5-B | 145 | 160 | 125 | 30 | 14 | 160 | 155 | 85 | ±8 | 14.7 |
CMP1-10T 用 | EPA-4B, MPA-5-B | 150 | 160 | 125 | 30 | 14 | 160 | 155 | 90 | ±8 | 14.7 |
CMP1-20T 用 | EPA-14, MPA-14-B | 155 | 160 | 125 | 30 | 14 | 160 | 155 | 95 | ±8 | 14.9 |
